SPECIFICATIONS

Brand Name: liitokala

Certification: RoHs,CE,FCC,RoHS,KC

Choice: yes

Compatible Devices: Battery

Data Transmission: Other

Display screen: Yes

High-concerned chemical: none

Intelligent Charge: Yes

Model Number: Lii-PD2

Origin: Mainland China

Output Power: ≤37.5

Package: Yes

Power Source: Ac

Quick charge: Yes

Type: Battery charger

Use: Standard Battery

Voltage range: Low voltage non-USB (below 75V DC, below 50V AC)

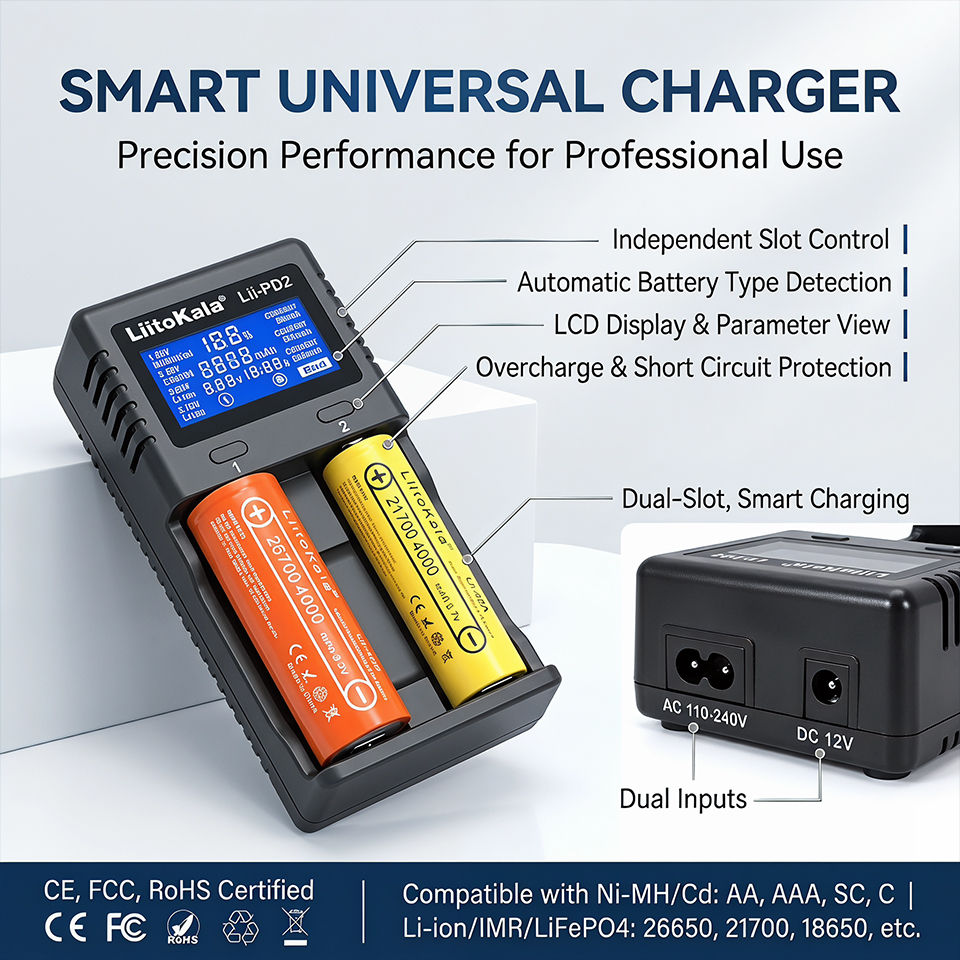

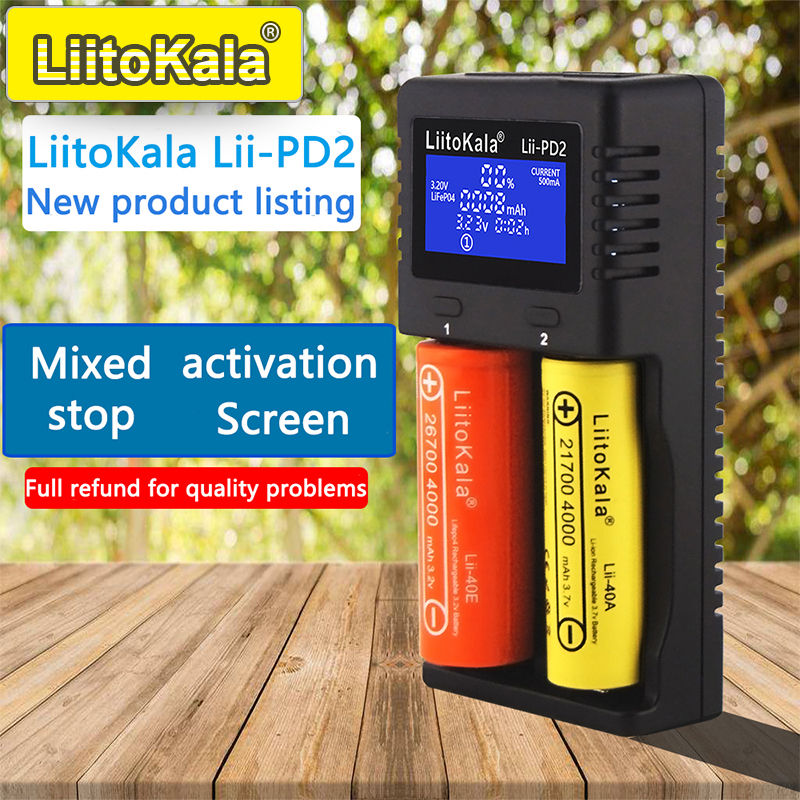

PD2 Professional Dual-Slot Intelligent Charger – Versatile Polarity-Free Charging for Your Entire Li-ion & NiMH Collection The PD2 charger is engineered for European vapers, flashlight enthusiasts, and hobbyists who demand absolute safety and convenience. Whether you are managing 18650, 21700, 26650, AA, or AAA cells, the PD2’s unique mechanical polarity-free system ensures you never have to guess which way to insert a battery again. Combined with an auto/manual chemistry selector and a crisp LCD information panel, this is the ultimate desktop charger.

Key Features at a Glance:

• Error-proof insertion: Insert batteries in either direction thanks to the automatic polarity detection and mechanical sliding contacts.

• Three charging currents: Long-press the channel key to toggle 0.5A (gentle), 1.0A (standard), or 2.0A (fast). Defaults to safe 0.5A.

• Wide chemistry support: Auto-detection for 3.7V Li-ion & 1.2V NiMH; manual selection for 3.20V LiFePO4 (LFP) and 3.85V IMR (LiHV).

• 0V Battery rescue: Revives deeply discharged unprotected Li-ion cells (voltage >0V, except dead-band 1.65–2.20V) with a soft-start trickle before entering normal CC/CV charging.

• Real-time monitoring: Watch live voltage, current, charged capacity (mAh), and elapsed time on the two independent channel displays. “FULL” marks completion.

• Fail-safe protection: Built-in safeguards against overcharge, short circuit, and reverse insertion. Automatically rejects damaged or incompatible cells.

Technical Specifications (EU Model):

• Input: DC 12V 1A (via included 100–240V AC 50/60Hz EU plug adapter, cable length 1.2m)

• Output Voltage: 4.20V ±0.05V for Li-ion 3.70V 4.35V ±0.05V for IMR 3.85V 3.65V ±0.05V for LiFePO4 3.20V 1.48V ±0.05V for NiMH/NiCd

• Charge Current: Li-ion/IMR/LiFePO4 – 2000mA (single slot max) / 1000mA x2 / 500mA x2; NiMH/NiCd – 500mA fixed

• Termination: CC/CV with <100mA cut-off

• Standby Current: <15mA
